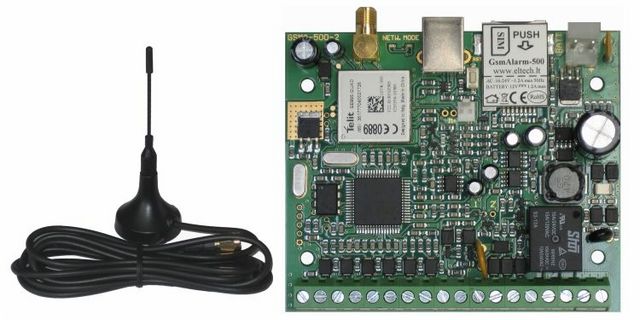

Remote Control and Monitoring via GSM Network
FEATURES
- 6 inputs.
- Up to 15 protection zones.
- 3 programmable low current outputs + 1 high current relay output.
- 5 users are notified.
- Possibility to connect up to four keypads.
- 20 programmable keypad access codes or iButton (DALLAS) keys.
- Automated remote control using up to 250 number Caller ID recognition without call cost.
- Possibility to transfer data to the security service monitoring station via SIA IP DC-09 protocol (GPRS channel) and Contact ID protocol (audio channel).
- Possibility connect to the SmartCloud server. To monitor and control system can be from any computer or smart phone using a standard web browser.
- Remote control using mobile phone keypad (through DTMF tones).
- 24 hour timer.
- Two partial protection modes (STAY and SLEEP).
- Possibility to divide the system into two independent partitions.
- Possibility to send data to alarm monitoring station using the CONTACT ID protocol (through GSM voice call).
- Possibility to connect up to 6 temperature sensors for temperature measurement.
- Info-carrying SMS showing state of each sensor, power supply voltage, GSM signal strength.
- GSM JAMMING detection.
- Programming and firmware upgrade via USB connection.
- Remote programming over GPRS.
- Integrated quad-band GSM module.
- Wide operating temperature range: -35...+65°C.
GsmAlrm-500 parameters may be set via computer using the GSM Alarm Configuration Tool GAPROG. The module is accessible via an USB port or over internet through GPRS channel.
iGsmAlarm program is designed to make easier using of GsmAlarm devices. Install programs on your smart device and try.
iGsmAlarm user manual
Download detail information
Related items
iGsmAlarm Free application to control GsmAlarm systems
Software for GsmAlarm devices configuration (GsmAlarm-340, GsmAlarm-500, GsmAlarm-500E, GsmAlarm-600).

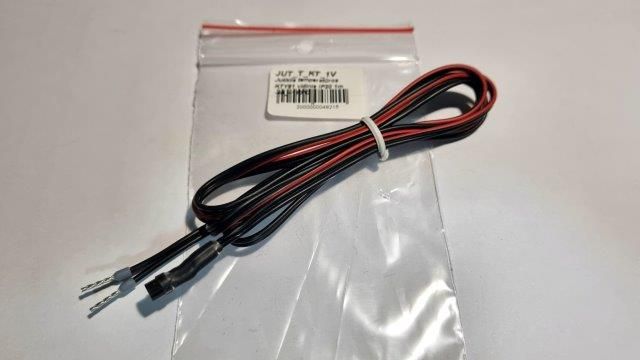

Part. No.: REZT_1K
